Diagrams your agent can defend: hands-on with Archify, the 73K-star skill for verifiable architecture diagrams

Architecture diagrams lie. Not on purpose — they rot. Someone draws the system in Mermaid or a whiteboard tool on day one, the code drifts for six months, and the diagram becomes a historical artifact that new hires learn not to trust. The usual fix is process: "update the diagram in every PR." It never survives contact with a deadline.

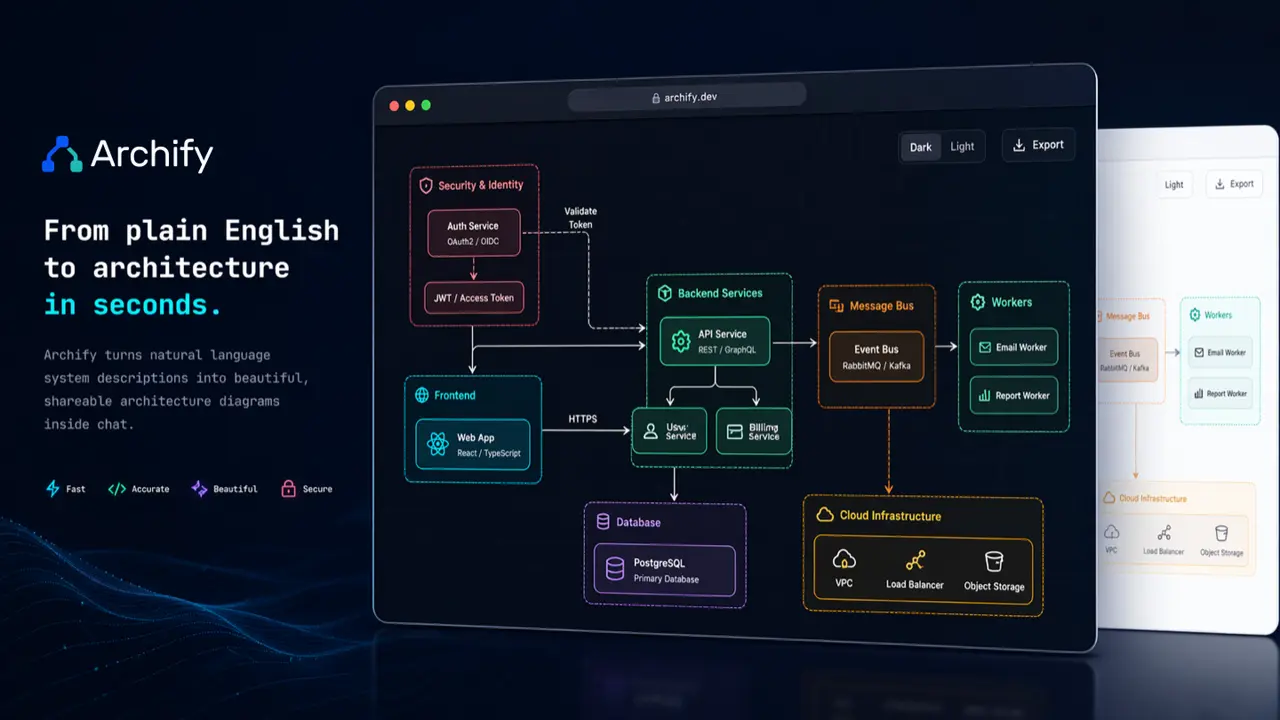

Archify takes the other route: make the diagram checkable by construction. It is an open-source agent skill (MIT, v3.0.1) that turns a typed JSON description into a polished, interactive, self-contained HTML diagram — architecture, workflow, sequence, data-flow, or lifecycle. And when the diagram claims to describe a real codebase, every component can carry citations to exact file-and-line ranges that the renderer verifies against the actual committed bytes at a pinned git revision. Cite a line that does not exist and the build fails. That last part is what separates it from every Mermaid renderer you have used, and it is a large part of why the project has pulled in over 73,000 GitHub stars, peaked at #1 on GitHub trending in late August 2026, and was still landing commits the morning we tested it.

We ran the whole thing hands-on: cloned the repo, rendered the demo, authored our own architecture JSON for a tiny demo repo, watched the evidence gate reject three of our own bad citations one by one, diffed two architectures, and rendered sequence and lifecycle diagrams. Every command below ran; every failure below actually happened.

What Archify actually is#

Archify ships as an agent skill — a SKILL.md plus a Node CLI that a coding agent invokes. The documented install is one line:

npx skills add tt-a1i/archify -g

It works with Cursor, Claude Code, Codex CLI, and OpenCode. The skill's operating loop is: the agent authors a candidate JSON diagram, then runs a finalize command that gates the output through validation, rendering, provenance checks, and a real-browser check, repairing failures in a bounded loop. You describe the system in plain language ("Browser calls the API, the API checks Redis, a cache miss queries Postgres"); the agent does the reading, authoring, and fixing.

The five diagram types and their schemas:

Output is a single HTML file: inline SVG, dark/light themes, optional trace motion, share cards, deep links, search/focus, presentation mode, and PNG/JPEG/WebP/SVG/WebM export from the viewer. When the scenario is ambiguous, archify guide "<scenario>" picks the type for you.

Two things Archify pointedly does not do, straight from the repo: automatic Mermaid parsing and general-purpose auto-layout are explicitly out of scope, as are hosted sharing and WYSIWYG editing. The skill will read your pasted Mermaid for topology and meaning — then it re-authors fresh Archify JSON rather than converting the styling. If you wanted a prettier Mermaid renderer, this is not it; that is the point.

Prerequisites#

• Node.js 18+ (we used Node v24.20.0 on Linux; the skill package needs no install step of its own)
• A terminal, about thirty minutes, no API keys, no GPU, no Docker
• Any git repo if you want the repository-evidence feature — we built a three-file demo app for it
• Optional: Chrome/Chromium (set ARCHIFY_CHROME) for the browser-check gate — our sandbox had none, and we will be honest about what that cost us

Step 1 — Install and verify#

We tested the CLI straight from a repo clone, which is also the documented path inside the skill:

git clone https://github.com/tt-a1i/archify.git
cd archify
node archify/bin/archify.mjs doctor

doctor checks every runtime the skill needs — template, renderers, preview, visual-check, validators, all five diagram types. Ours came back clean:

[ok] Node.js v24.20.0 (requires >=18)
[ok] Core template
[ok] Example renderer
...
[ok] architecture renderer, schema, and example
[ok] workflow renderer, schema, and example
[ok] sequence renderer, schema, and example
[ok] dataflow renderer, schema, and example
[ok] lifecycle renderer, schema, and example

Archify is ready.

Step 2 — Render your first diagram#

node archify/bin/archify.mjs demo ./demo-out
# Demo ready: ./demo-out/archify-demo.html

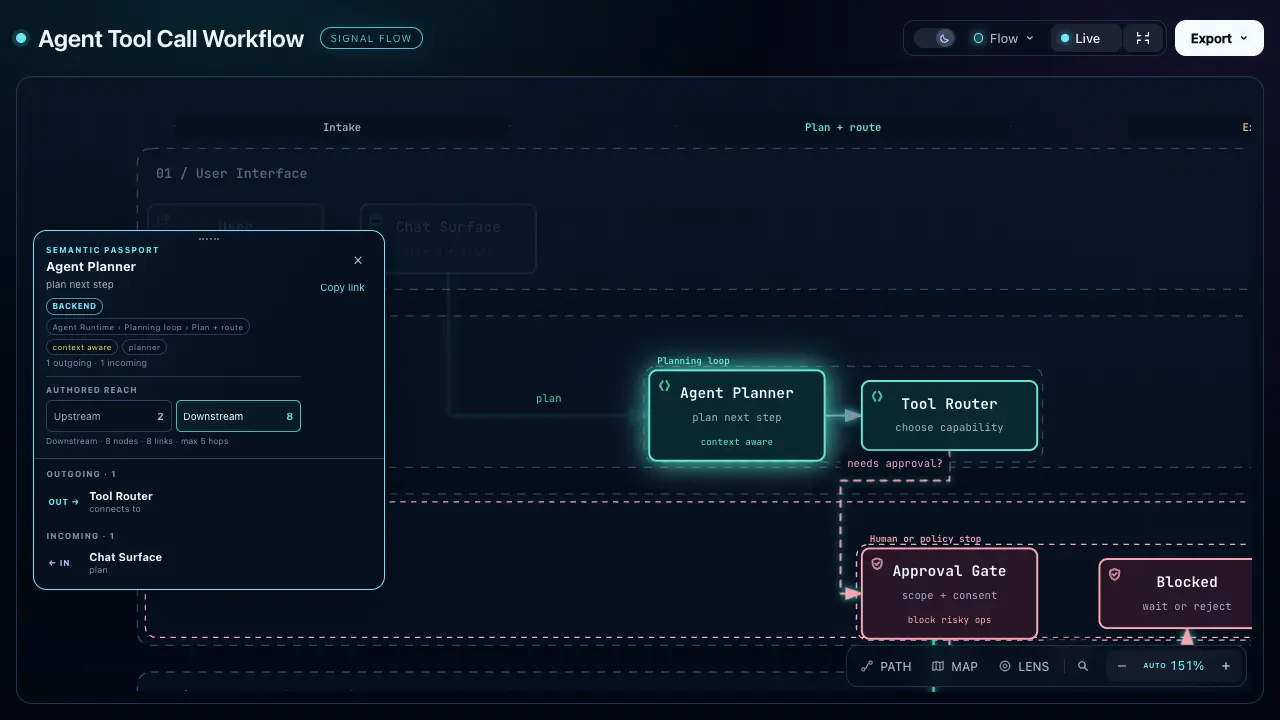

One command, one 762 KB HTML file. We checked the claim that matters: the output contained zero external http script or stylesheet references — everything is inline, including the SVG. It works offline, it is emailable, it will still render in ten years. The demo shows the interactive viewer: theme toggle, export menu, and the explorable node cards.

Step 3 — Author your own diagram JSON#

A diagram is a small typed JSON document. Here is the complete architecture candidate we authored for a three-file demo app (an API layer, a background worker, a SQLite store) — every field below passed the repo's schema validator:

{
  "schema_version": 1,
  "diagram_type": "architecture",
  "meta": { "title": "Demo Job Pipeline", "quality_profile": "showcase" },
  "components": [
    { "id": "api", "type": "backend", "label": "API layer",
      "sublabel": "POST /jobs", "pos": [60, 220], "size": [150, 70] },
    { "id": "worker", "type": "backend", "label": "Worker",
      "sublabel": "queue drain", "pos": [300, 220], "size": [150, 70] },
    { "id": "store", "type": "database", "label": "Result store",
      "sublabel": "SQLite", "pos": [540, 220], "size": [150, 70] }
  ],
  "connections": [
    { "id": "api-to-worker", "from": "api", "to": "worker",
      "label": "enqueue_job" },
    { "id": "worker-to-store", "from": "worker", "to": "store",
      "label": "save_result" }
  ]
}

Component types are a closed enum (frontend, backend, database, cloud, security, messagebus, external), which is how the diagrams keep their consistent visual language instead of devolving into box-and-arrow soup. Positions are explicit coordinates — remember, auto-layout is deliberately out of scope; the agent (or you) places nodes using the authoring defaults.

Step 4 — Finalize: four gates before the HTML counts#

render makes HTML; finalize is the command the skill actually uses, because it refuses to hand you output that has not earned it:

node archify/bin/archify.mjs finalize architecture \
  demo-pipeline.architecture.json demo-pipeline.html \
  --quality showcase --json

The four gates, in order: validate (schema plus layout rules — overlaps, label collisions, viewport overflow), deliver (render the artifact), check (strict provenance: the HTML embeds the candidate's SHA-256 so the file can prove what source produced it), and browser-check (a real Chromium render pass). A non-zero exit is never success, and each run writes machine-readable receipts next to the artifact.

On our sandbox the first three gates passed and browser-check reported skipped with a clean diagnostic: viewer/chrome-unavailable — Set ARCHIFY_CHROME to its executable path. No Chrome exists in this environment, so we report automated checks only — which is exactly what the skill's own delivery contract demands: never claim visual inspection you did not perform.

Step 5 — Pin every box to real code: repository evidence#

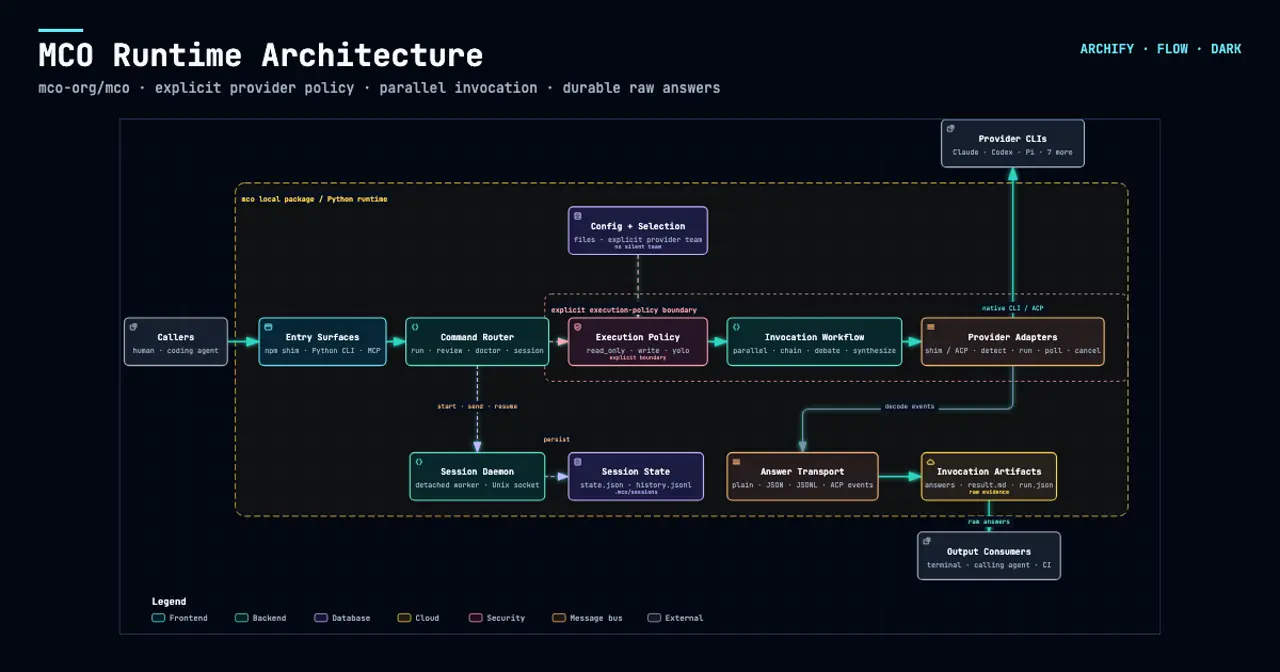

This is the feature that justifies the star count. A diagram that claims to describe a real repository can carry source evidence: each component gets a sources array of {path, line, end_line, label} citations, and meta.repository pins the repo's URL and the full 40-character commit SHA. Pass --repo-root and the validator checks every citation against the committed bytes at that exact revision — read straight from git objects, ignoring replace refs. Uncommitted working-tree edits do not count as evidence.

We added citations to our demo candidate and ran it against our demo repo. The gate rejected us three times — and each rejection was correct:

1. repository-evidence/url-invalid — our first meta.repository.url was a file:// path; the schema demands a credential-free HTTP(S) or SSH repository address.
2. repository-evidence/git-command — the evidence repo must have an origin remote; our fresh demo repo did not. One git remote add origin later, we moved on.
3. repository-evidence/line-out-of-range — three times, one per file. We had cited api.py lines 5–8; the file has 7 lines. Then worker.py 13–16 against a 14-line file. Then store.py 7–10 against an 8-line file. Our hand-counted line numbers were wrong in all three files, and the verifier caught every one against the pinned revision 6fb44090….

After fixing the citations, the full gate run passed — validate, deliver, check — and the 745 KB HTML embeds the verified citations. Clicking a node in the viewer surfaces its source references. This is the anti-rot mechanism: a diagram whose citations no longer match the code fails loudly at build time instead of decaying silently in a wiki.

Step 6 — Diff two architectures#

Diagrams change; Archify can show you how. The repo ships a base/head pair for a checkout platform, and compare produces a semantic diff plus a rendered delta page:

node archify/bin/archify.mjs compare architecture \
  checkout-platform.base.architecture.json \
  checkout-platform.head.architecture.json delta.html --json

The receipt reported exactly what changed between the two revisions: 1 component added, 1 changed, 1 removed, 1 moved; connections added, changed, removed, and rerouted — each keyed by semantic identity, not by raw JSON diffing. For architecture review in a large refactor, that is considerably more useful than eyeballing two pictures.

Sequences and lifecycles#

We also finalized the repo's cache-miss-request.sequence.json (API call chain: web app → cache → database) and agent-run.lifecycle.json — both passed validate/deliver/check. One honest blemish: the deployment-release.lifecycle.json example failed at the deliver stage in our environment with the same viewer/chrome-unavailable diagnostic — that particular example needs Chromium for layout where the others did not. On a normal dev machine with Chrome installed, the skill's repair loop would handle it; in a headless sandbox, it is a real limitation worth knowing about before you build automation on top of it.

When to use Archify vs the alternatives#

Caveats before you commit#

• The browser gate needs a browser. Without Chrome/Chromium (ARCHIFY_CHROME), browser-check skips and one lifecycle example cannot deliver. Budget for that in CI.
• Visual quality is opt-in. The skill treats perceptual review as advisory and off by default; automated gates passing is not the same as a human judging the layout good. We report automated checks only.
• It is agent-first. The authoring loop — write candidate, finalize, read the diagnostic, repair, rerun — assumes an agent doing the cycles. Hand-authoring small diagrams is perfectly fine, but the repair references are written for agents.
• Coordinates are manual. No auto-layout means the agent spends effort on placement; the repo ships layout-repair references for exactly this reason.
• Sponsored but MIT. The README carries sponsor placements (Kimi Work, Supercode, OpenLux), but the license is plain MIT — no additional commercial terms hiding in the LICENSE file.

The takeaway#

1. The diagram is a build artifact. Typed JSON in, self-contained HTML out — inline SVG, zero external requests, dark/light themes, export to PNG/WebP/SVG and more.
2. Evidence is the differentiator. Components cite {path, line, end_line} against a pinned commit, and the renderer verifies the bytes with git. It caught three of our own wrong citations; that is the feature working as designed.
3. Finalize, don't just render. The four-gate pipeline (validate → deliver → check → browser-check) with machine-readable receipts is what makes agent-authored diagrams trustworthy.
4. Diffs are first-class. compare gives you semantic architecture diffs — added, removed, moved, rerouted — not pixel comparisons.
5. Know the boundaries. No automatic Mermaid import (explicit non-goal), no auto-layout, and the browser gate genuinely needs a browser. Everything else we tried worked exactly as documented.

If your team has ever been burned by a beautiful architecture diagram that described a system that no longer exists, Archify is worth the thirty minutes: it makes the diagram prove its claims at build time, or fail trying. That is a bigger idea than prettier boxes.
